POMPOSO
MA 130.4Pro
MA 160.2X
MA 100.2LE
MA 100.4X
TECHNICAL DETAILS
MA 130.4Pro
MA 160.2X
MA 100.2LE
MA 100.4X

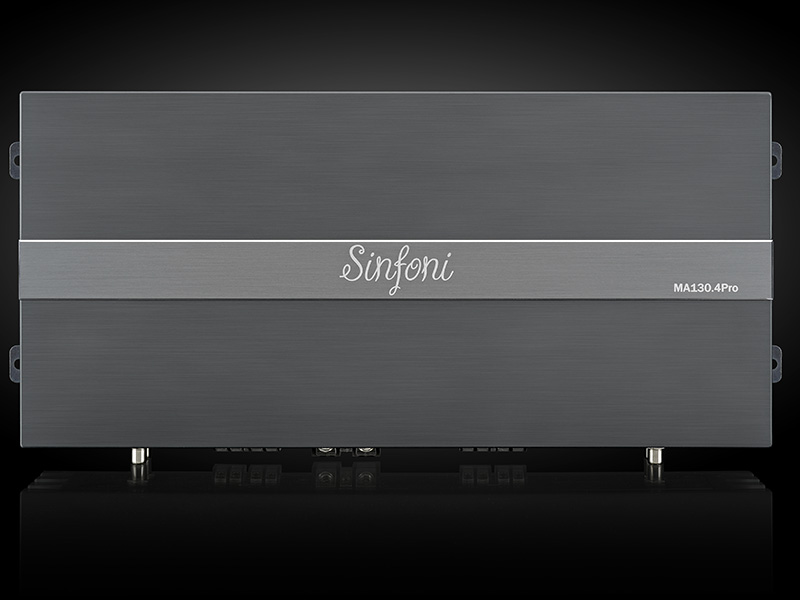

MA130.4Pro
4 Channel Class AB Amplifier
Specifications :
Power Supply : 10.5 -16 VCC
Total Harmonic Distortion : 0.05%
Standby Current : 1.2A
Input Sensitivity : 0.1 -9V
Input Impedance : 27K Ohms
Output Power :
- 4 Ohms @ 12V : 130 Watts x 4
- 2 Ohms @ 12V : 200 Watts x 4
- Bridge 4 Ohms @ 12V : 300 Watts x 2
Frequency Response : +/- 1dB From 10Hz - 30kHz
Channel 1 & 2 Filters (Full / Hi-Pass): 50Hz – 300Hz
Channel 3 & 4 Filters (Full / Lo-Pass / Hi-Pass): 50Hz – 300Hz
Signal / Noise Ratio : > 100dB
Channel Separation: > 90dB
Damping factor: > 500
MA 160.2pro
2 Channel Class AB Amplifier
Specifications :
Power Supply : 10.5 -16 VCC
Total Harmonic Distortion : 0.05%
Standby Current : 1.2A
Input Sensitivity : 0.1 -9V
Input Impedance : 30K Ohms
Current Draw : 30A
Output Power :
- 4 Ohms @ 12V : 150 Watts x 2
- 2 Ohms @ 12V : 220 Watts x 2
- Bridge 4 Ohms @ 12V : 260 Watts x 1
Frequency Response : +/- 1dB From 5Hz - 35kHz
Channel 1 & 2 Filters (Full / Lo-Pass / Hi-Pass): 50Hz – 300Hz
Signal / Noise Ratio : > 100dB
Channel Separation: > 90dB
Damping factor: > 500
MA 100.2 LE
Class AB 2 Channel Amplifier
Specifications :
Power Supply : 10.5 -16 VCC
Total Harmonic Distortion : 0.005%
Standby Current : 1.2A
Input Sensitivity : 0.1 -8V
Input Impedance : 30K Ohms
Current Draw : 30A
Output Power :
- 4 Ohms @ 12V : 100 Watts x 2
Frequency Response : +/- 1dB From 5Hz - 35kHz
Signal / Noise Ratio : > 95dB
Channel Separation: > 60dB
Damping factor: > 500
MA100.4X
4 Channel Class AB Amplifier
Specifications :
Power Supply : 10.5 -16 VCC
Total Harmonic Distortion : 0.05%
Standby Current : 1.2A
Input Sensitivity : 0.1 -9V
Input Impedance : 27K Ohms
Output Power :
- 4 Ohms @ 12V : 100 Watts x 4
- 2 Ohms @ 12V : 200 Watts x 4
Frequency Response : +/- 1dB From 10Hz - 30kHz
Signal / Noise Ratio : > 100dB
Channel Separation: > 90dB
Damping factor: > 500
