ACCESSORIES

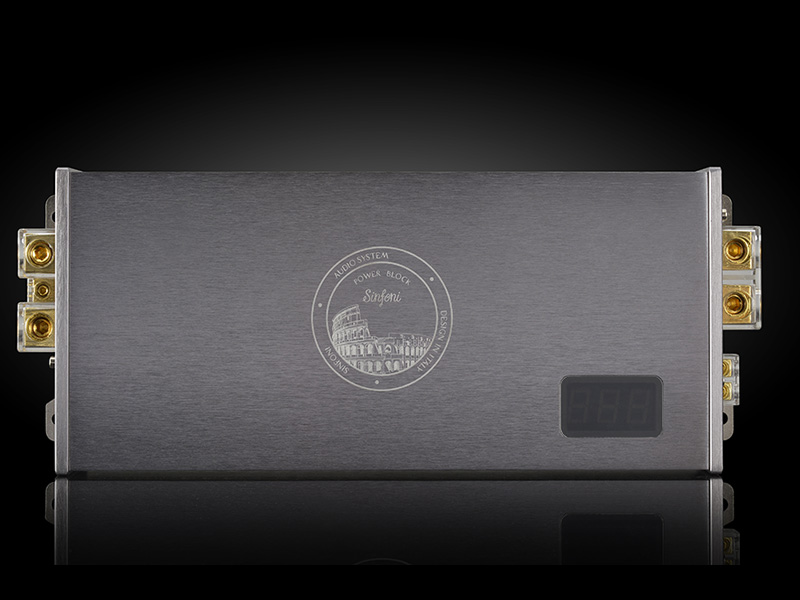

The Sinfoni Power Block is a compact, high efficiency audio regulator for power amplifiers and processors that eliminates vehicle voltage fluctuations and noise to provide a clean and stable direct current power supply up to a maximum of 2000W. The output voltage can be set to any amount between a lower limit of the input voltage (+10V minimum) and a maximum of 15V. It features a high-speed switching and current-sensing circuit, a large capacity power circuit featuring the next-generation IC, and an exceptional S/N feel thanks to its Aluminum alloy body, all combining to maximize the quality of the original sounds delivered by the power amplifier and processor.

TECHNICAL DETAILS

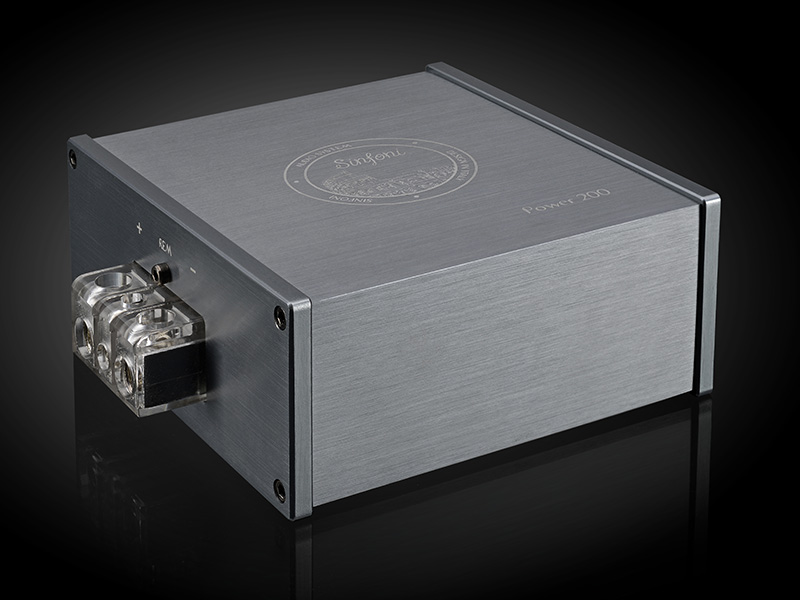

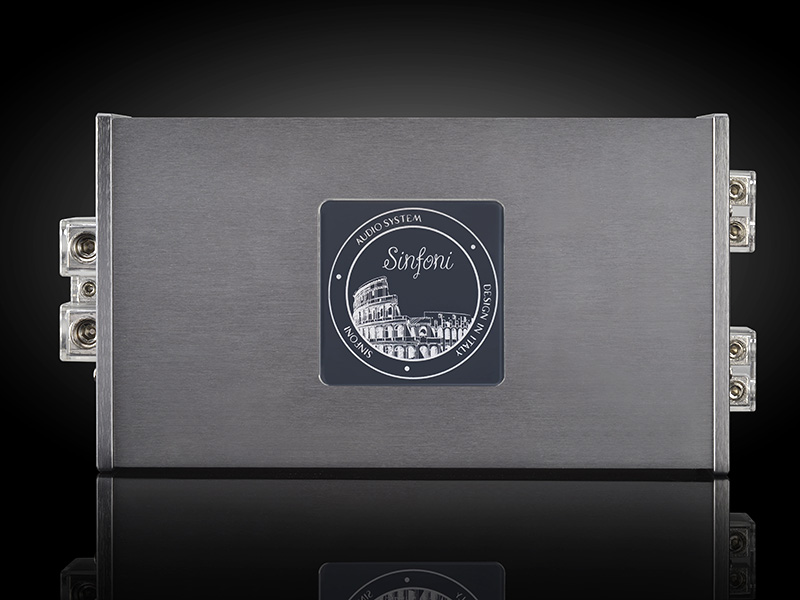

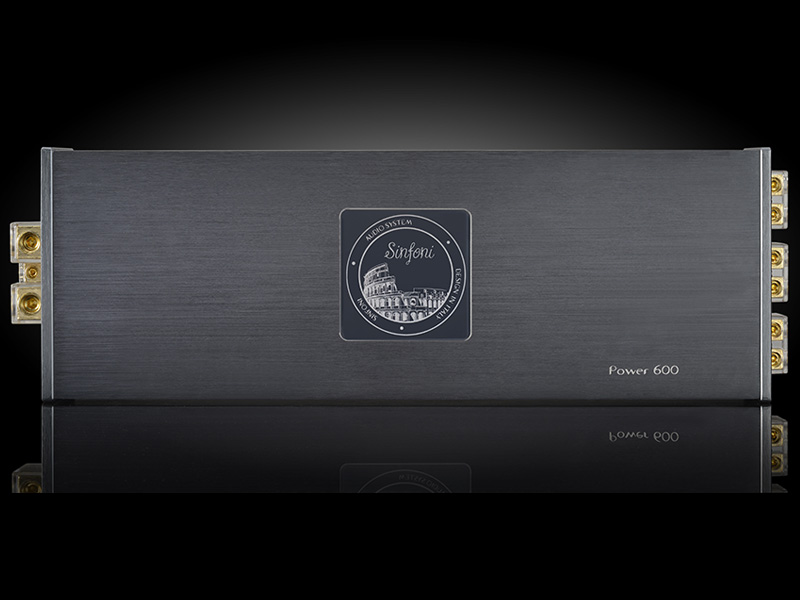

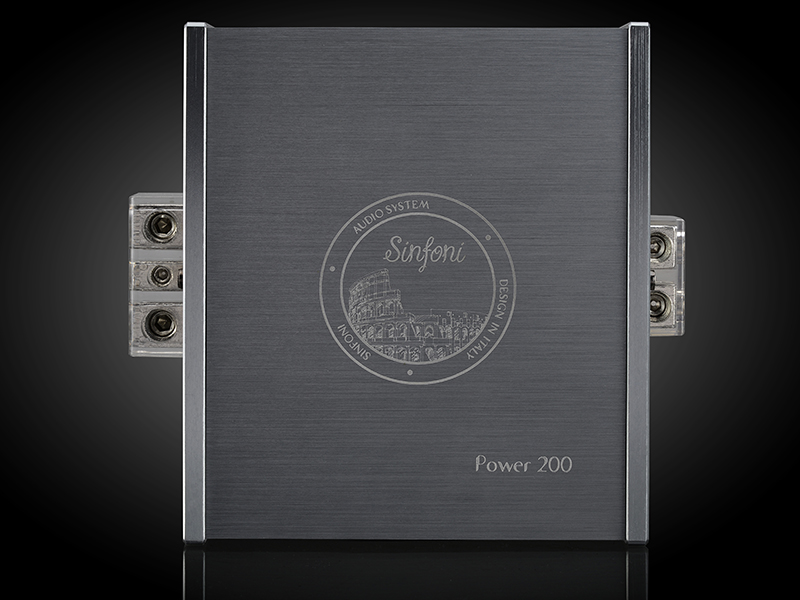

Power 600 Power 300 POWER 200 Power block
12V -16V Surge

For Systems Up To 1500 Watts

3 Farads

Louder & Clearer Bass Response

Stabilizes Battery Voltage

Similar to a Battery/Capacitor Combo

Accepts (2) 1/0ga or 4ga Inputs / Outputs or Combination of (1) each

Unique Industrial Styling




12V -16V Surge

For Systems Up To 500 Watts

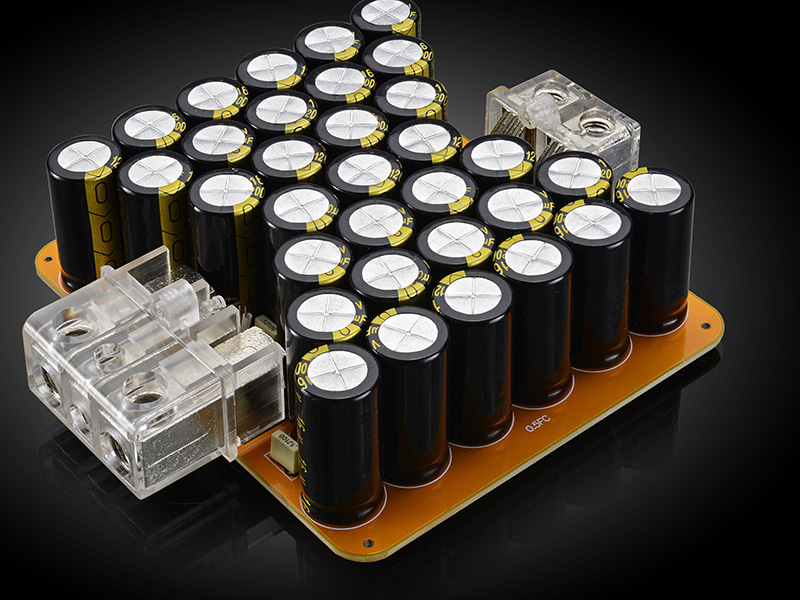

Capacitance quantity: 33px12000uF

Louder & Clearer Bass Response

Stabilizes Battery Voltage

Similar to a Battery/Capacitor Combo

Unique Industrial Styling




Input Voltage: 10-14.5V

Output Voltage: 12-15.5V

Current Ratio: 155A@12V, 125A@13.5V

Maximum Output Power: 2000W


Battery Recommend: >60A
