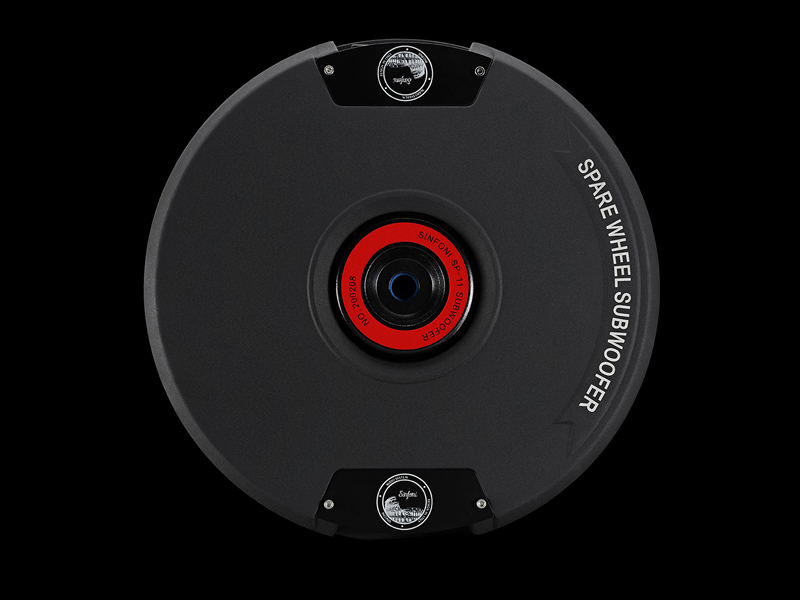

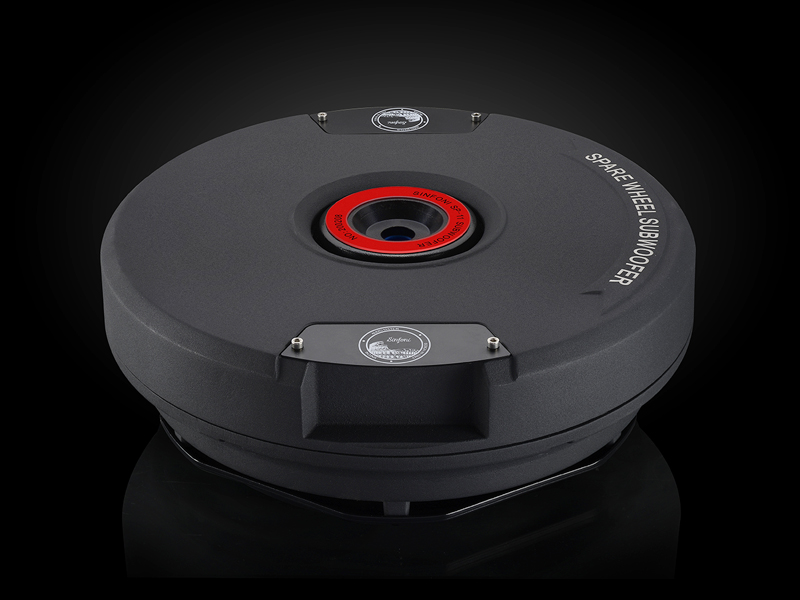

Sinfoni SP11 11-inch active spare tire subwoofer
Supply Voltage:11~15V DC
Power Output 2ohm Rms:350W
Max Power 2ohm:800W
Frequency Response:25Hz~150Hz
LPF:40~150Hz
Subsonic:25Hz
Bass Boost:0~12 dB
Phase:0/180°
InputImpedance:15K OHMS
S/n Ratio:90dB
T.H.D.:0.05%

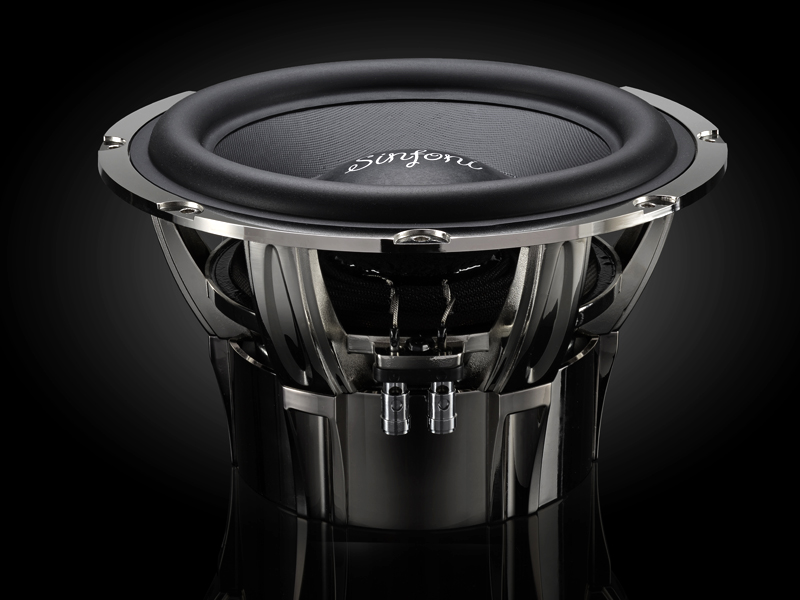

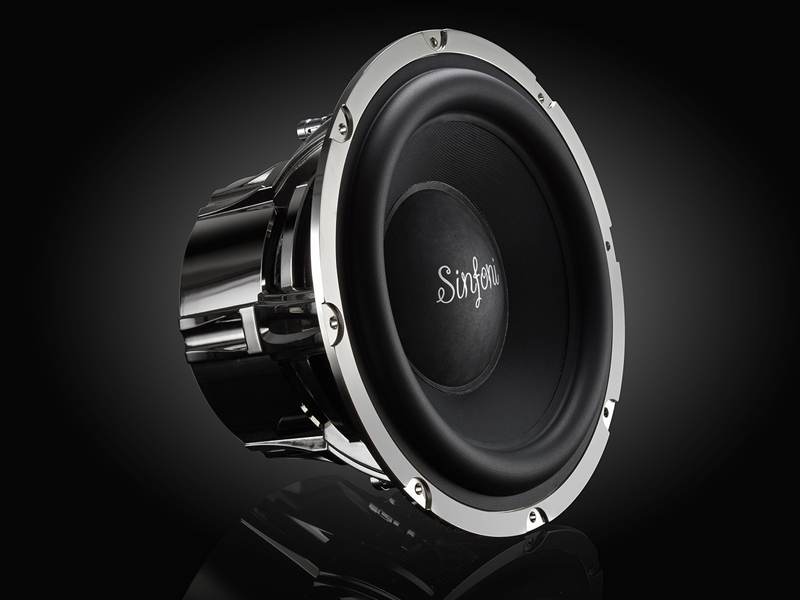

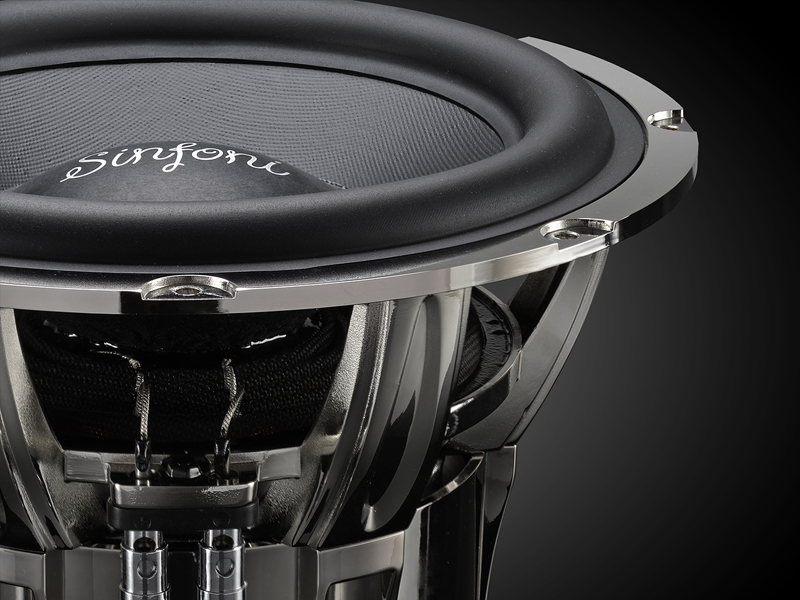

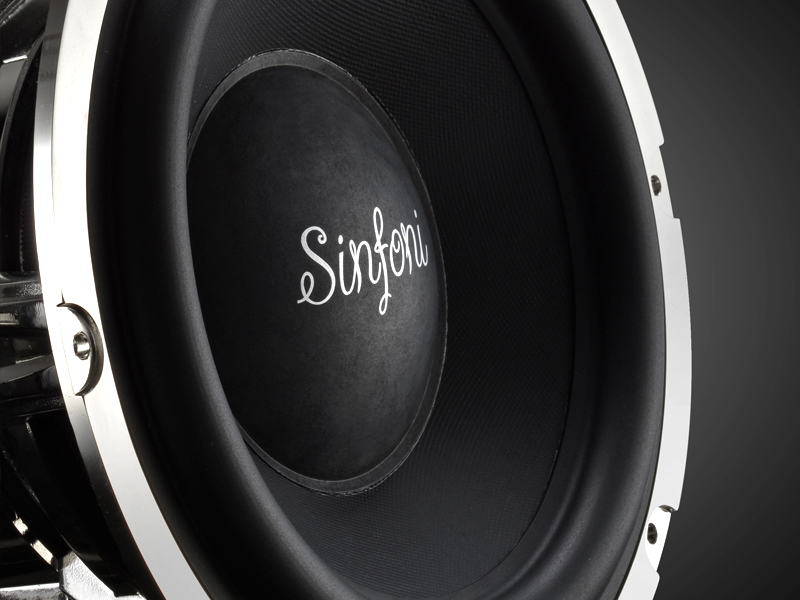

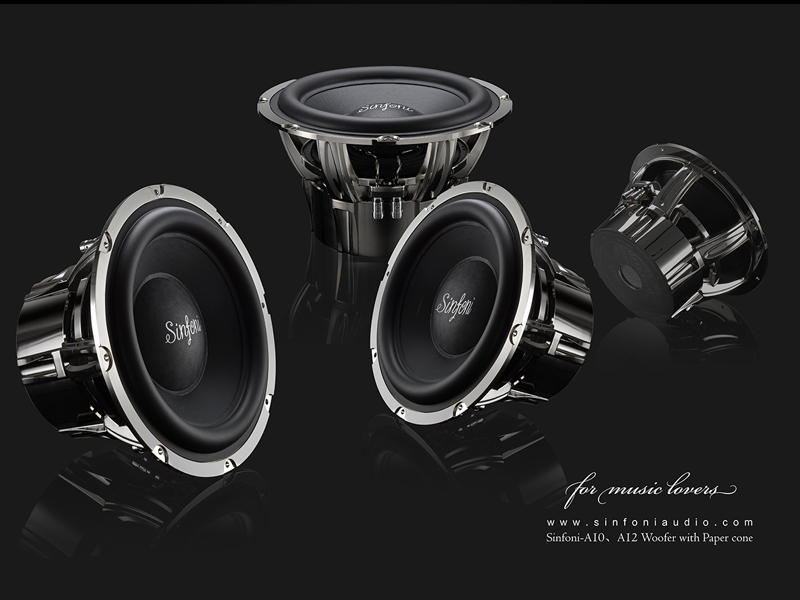

A12 - 12” Reference Subwoofer with Carbon-fiber cone
Sinfon carbon-fiber mixed paper cone with low-loss rubber surround to provide low distortion high excursion and linearity performance.
Symmetrical spider construction to prevent coil wobbling.
65 mm diameter voice coil with titan former and SV wire for optimized moving mass and low Rms.
Flow-optimized designed die-cast aluminium basket for high linear excursion speaker to avoid compression effects and resonances.
Double-magnet high-power drive system with aluminium inductivity control ring for extremely low distortion and optimized impedance.
Power handing RMS: 120W
Power handing MAX: 250W
Frequency response: 27-1000Hz
Sensitivity：86dB 1W/1M
Impedance: 2*2 Ohms
Mounting Depth: 48mm/5.83inch
Small, Handy, Powerful – These are the capacities of the new SP-10 spare wheel active subwoofer. Simple mounting in the spare wheel, rigid sealed cast aluminum enclosure inclusive cable remote control and mounting accessories. The powerful all-round subwoofer, for those who like it simple and without loosing space – hidden, 100 % reversible!
Spare wheel active subwoofer
Maximum output power: 800 W
Rated power (RMS) : 350 W
Output impedance: 2.2 Ω + 2.2 Ω (Dual speakers)
Frequency Response: 25 ~ 150 Hz
Sensitivity (Distortion level 1%) RCA input: 82 mV
Speaker level input: 0.8 V
Source Voltage: 14.4 V (11 V ~ 16 V)
Lowpass Frequency control: 40-150Hz
Bass Boost ：0-12dB@45Hz
Phase: 0/180
S/N(A): 90 dB
T.H.D<0.05%
Remote level control: Yes / wired
10 inch woofer with PP Cone
RMS Power : 120W
MAX Power: 250W
Frequency Response: 30-1200Hz
Sensitivity: 86 dB
Impedance: 4 Ohms
Mounting depth: 110mm

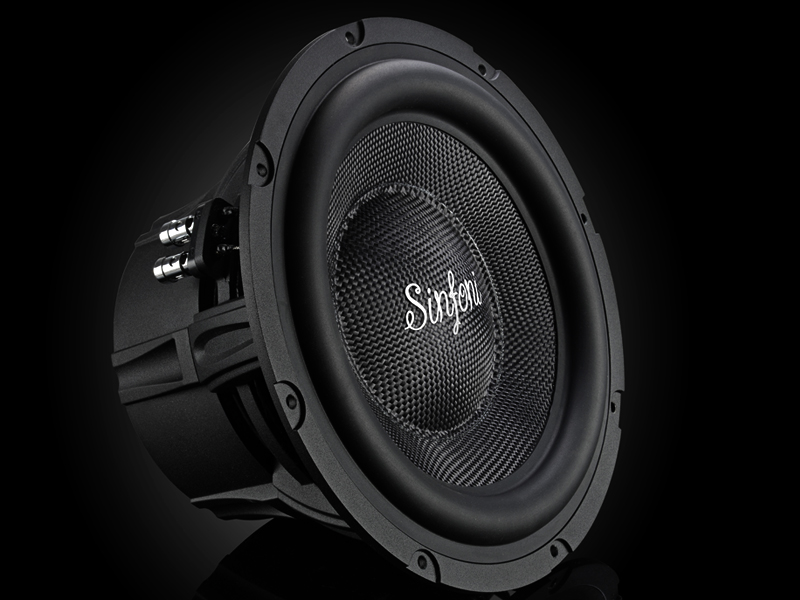

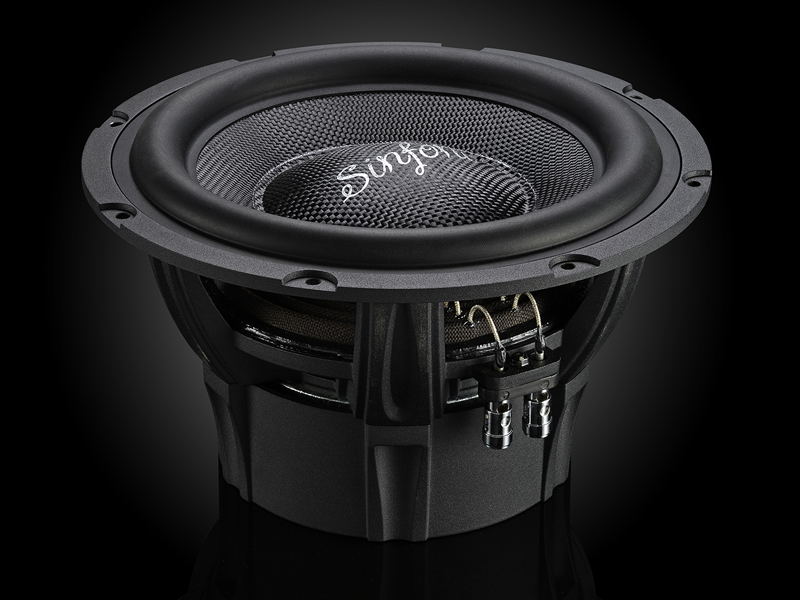

SW12 - 12" Subwoofer with Glassfiber cone
Sinfoni glassfiber composite cone with low-loss rubber surround to provide low distortion, high excursion and linearity performance.
Symmetrical spider construction to prevent coil wobbling.
65 mm diameter voice coil with titan former and SV wire for optimized moving mass and low Rms.
Flow-optimized designed die-cast aluminium basket for high linear excursion speaker to avoid compression effects and resonances.
Double-magnet high-power drive system
Power handing RMS: 15EJW
Power handing MAX: 300W
Frequency response: 25-1Q00Hz
Sensitivity: 85dB 1W/IM
Impedance: 2*2 Ohms
Mounting Depth: 148mm/5.83inch
SW10 - 10" Subwoofer with Glassfiber cone
Sinfoni glassfiber composite cone with low-loss rubber surround to provide low distortion, high excursion and linearity performance.
Symmetrical spider construction to prevent coil wobbling.
65 mm diameter voice coil with titan former and SV wire for optimized moving mass and low Rms.
Flow-optimized designed die-cast aluminium basket for high linear excursion speaker to avoid compression effects and resonances.
Double-magnet high-power drive system
Power handing RMS: 150W
Power handing MAX: 300W
Frequency response: 28-1000Hz
Sensitivity: 83dB1W/1M
Impedance: 2*20hms
Mounting Depth: 142mm/5.0inch
SW8 - 8 " Subwoofer with GlassFiber cone
Sinfoni glassfiber composite cone with low-loss rubber surround to provide low distortion, high excursion and linearity performance.
Symmetrical spider construction to prevent coil wobbling.
50 mm diameter voice coil with titan former and SV wire for optimized moving mass and low Rms.
Flow-optimised designed die-cast aluminium basket for high linear excursion speaker to avoid compression effects and resonances.
Double-magnet high-power drive system
Power handing RMS : 100W
Power handing MAX: 200W
Frequency response:34-300Hz
Sensitivity: 84dB 1W/1M
Impedance: 2*20hms
Mounting Depth: 112mm/4.40inch
8 inch Active Subwoofer System
8 inch Subwoofer with paper cone
Sealed Slim Aluminium Enclosure
Normal Power: 150W
Distortion (THD): ＜0.1%
Signal To Noise Ratio: ＞95dB
Frequency Response: 50Hz-300Hz
Input Sensitivity, High Level: 1.0V
Input Sensitivity, Low Level: 225mV
Low Pass Filter: 40Hz-250Hz
Fuse Rating: 25A*2
Unit Dimension: 272x201x77mm

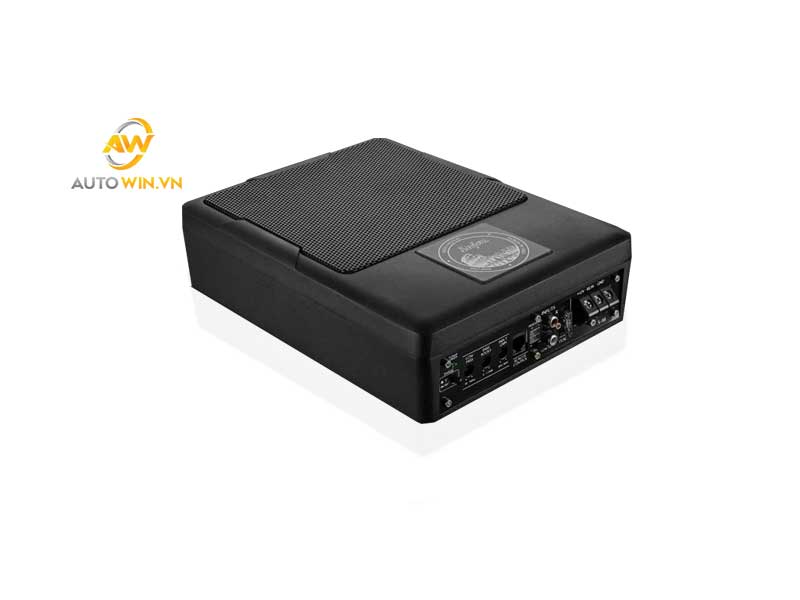

8x6 inch Subwoofer with paper cone
Sealed Slim Aluminium Enclosure
Normal Power: 180W
Distortion (THD): ＜0.1%
Signal To Noise Ratio: ＞90dB
Frequency Response: 20Hz-300Hz
Input Sensitivity, High Level: 1.0V
Input Sensitivity, Low Level: 225mV
Low Pass Filter: 40Hz-250Hz
Fuse Rating: 25A
Unit Dimension: 345x160x68mm

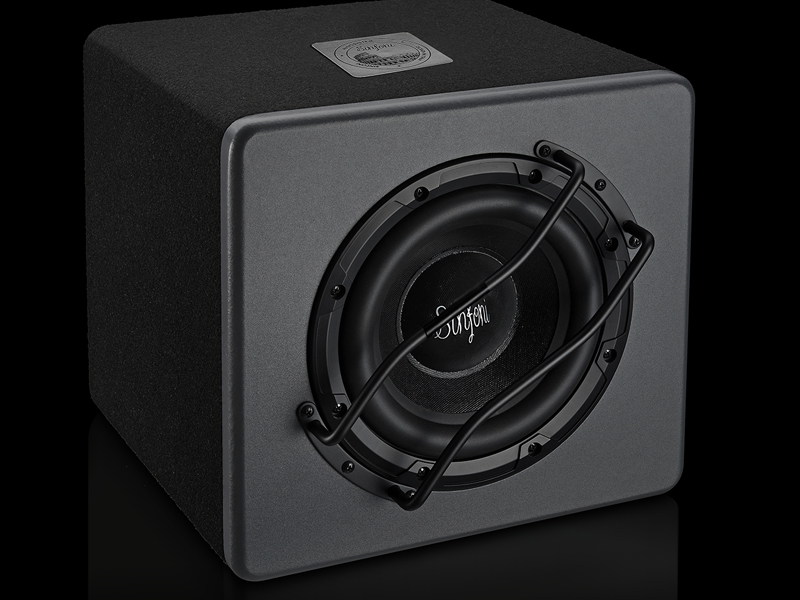

8 inch Active Subwoofer System
8 inch Subwoofer with paper cone
Sealed MDF Enclosure
Normal Power: 150W
Distortion (THD): ＜0.1%
Signal To Noise Ratio: ＞95dB
Frequency Response: 25Hz-300Hz
Input Sensitivity, High Level: 1.0V
Input Sensitivity, Low Level: 225mV
Low Pass Filter: 40Hz-250Hz
Fuse Rating: 25A
SP-11
SP-11 1
A12
A12 1
A12 2
A12 3
A12 4

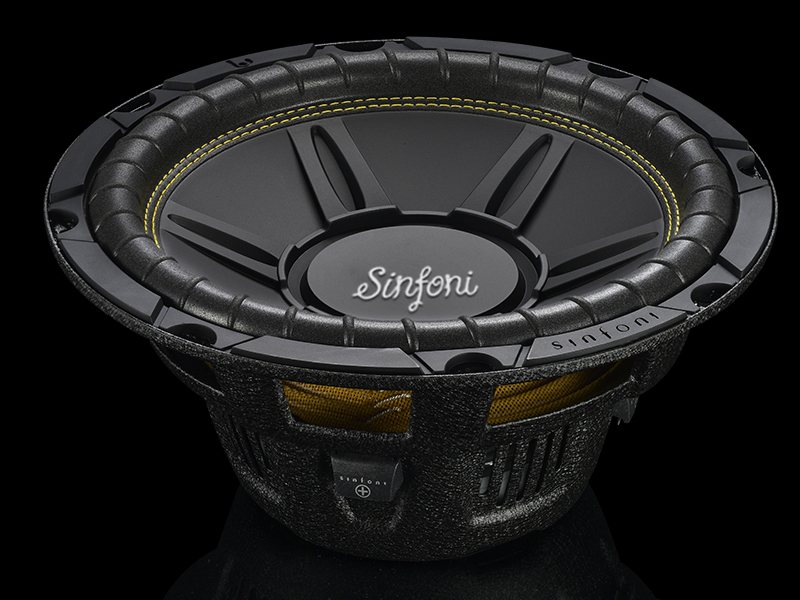

Sub-S10-1

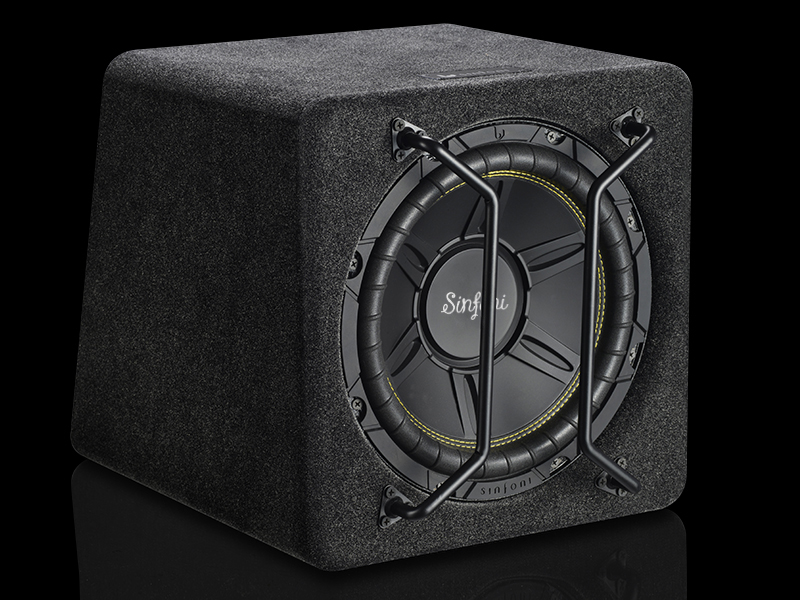

Sub-S10-2
SW-12
SW-12 1
S88 new ultra

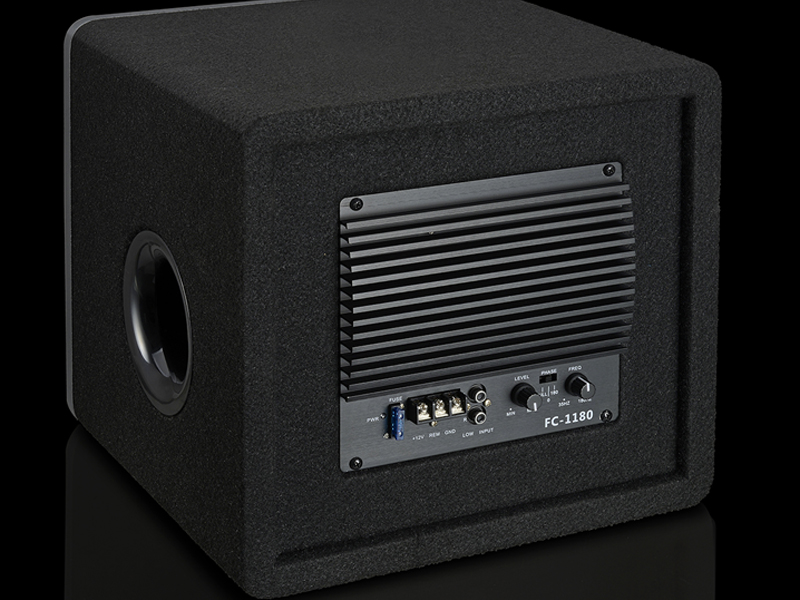

DS8
